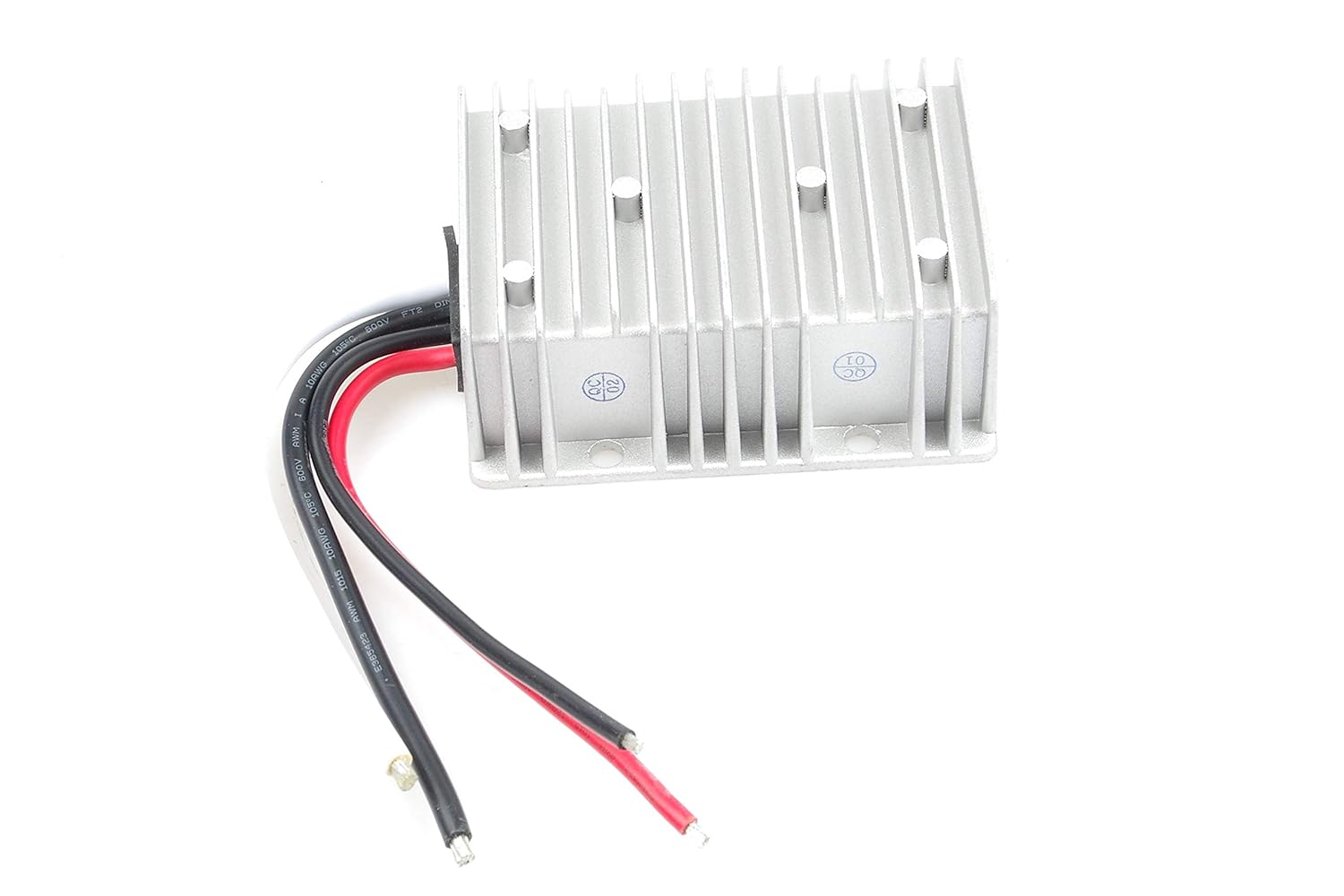

DC 24V to DC 13.8V 40A 552W Converter Voltage Regulator 40A Step-up Power Supply Circuit Module Adapter for Auto Car Truck Vehicle Boat Solar System Electric Motor

Wiring: INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to LOAD+, OUTPUT- to LOAD- Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Efficiency: 95% Input Voltage:DC 24V (18-36V) Output Voltage: DC 13.8V Output Current: 40A Ripple: 130mVp Line Regulation: ±0.2% Load Regulation: ±0.2% Voltage Accuracy: ±1.5% Enclosures: IP67 Dimension: 100*80*40mm Net Weight: 0.5kg Case Operating Temperature: -40~85°C Warranty: 1 year MTBF: 100,000 hours Application: 24V DC battery of vehicles as input power to 13.8V DC appliances as output load. Questions How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.

• 100% full rated power and stable output voltage
• 100% burn-in test and 4 times quality inspection
• Over current protection, Over voltage protection, Over temperature shutdown, Fuse built
• Aluminium shell with epoxy potting and waterproof IP68
• High efficiency up to 97%
